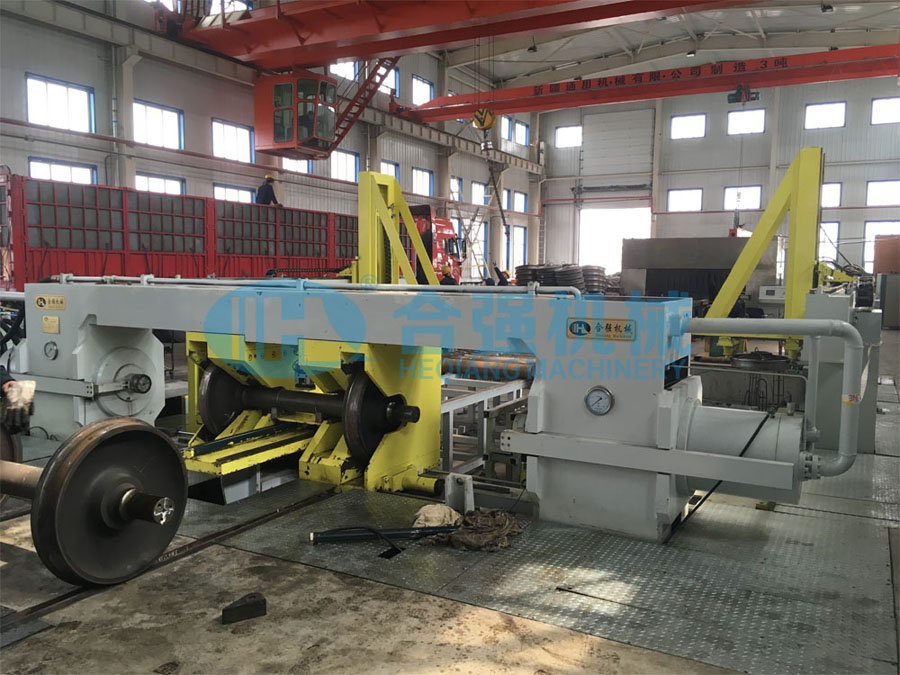

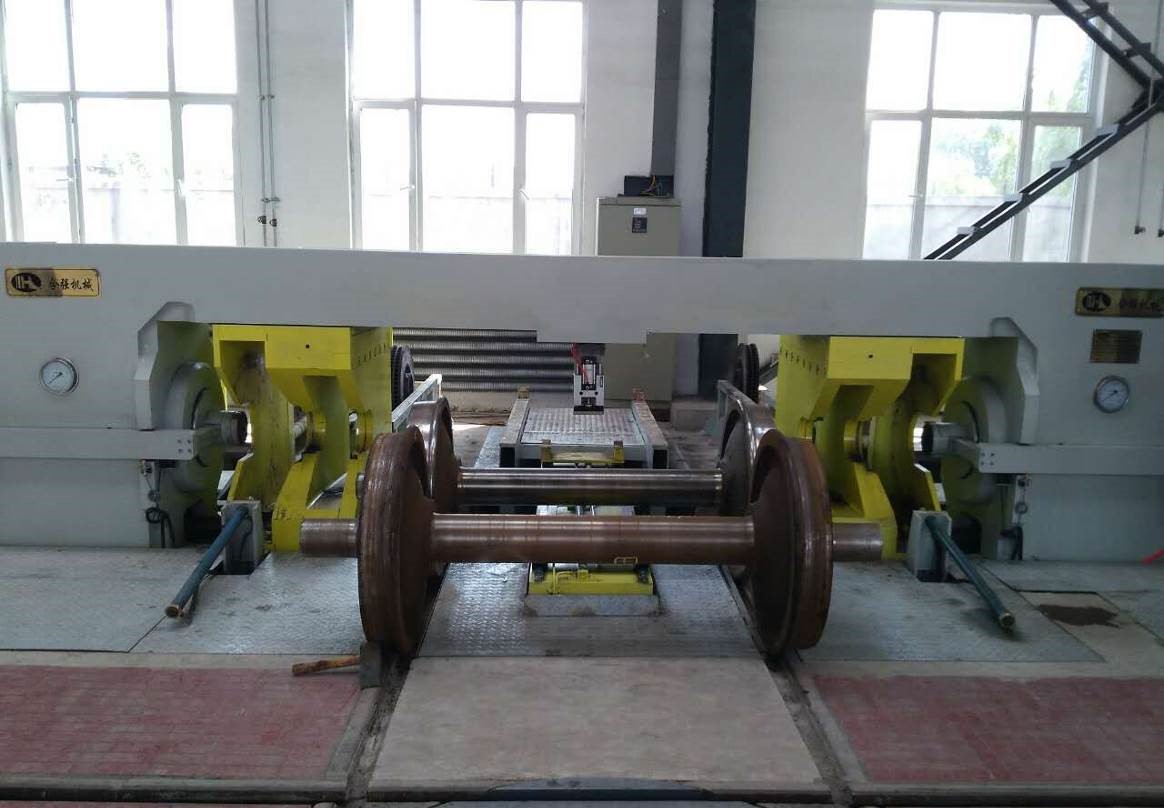

500t Wheelset Press Cell for Wagon Wheel Disassembly
Freight Car Wheelset Disassembly Cell Wheel Demount Line
Smart Wheel Demount Press Cell For Wagon Wheelset Dismount 15 Sets Per Hour
1. Application scope:
This Smart Wheelset Disassembly Cell (Wheel dismount line) is used to dismount the wagon wheelsets (wheels and brake disc). The press can dismount at least 15 wheelsets per hour.
The Wheelset Disassembly Cell consists of:
1) 1 set of wheelset loading trolley
2) 1 set of double cylinder wheelset demount press
3) 2 set of wheel overturning and stacking machine
4) 1 set of axle storage rack
5) 2 set of brake disc storage rack
2. Operation procedure:
1) First, the movable baffle devices of the wheelset press move to the set position.
2) The the wheelset rolls onto the loading trolley and the trolley delivers the wheelset into the press and make the wheels insert into the baffle devices
3) The trolley exits out of the press
4) The Press rams extend out to dismount the wheels and brake discs
5) The baffle devices retract and the dismounted wheels rolls onto the wheel overturning machine, overturned and stacked, and lifted away by crane.
6) Meanwhile, the trolley goes to pick up the dismounted axle and sends it to the axle storage rack, and lifted away by the crane.
3. Technical parameters of the Wheel Press-fitting machine:
| Maximum pressing force | 5000 kN / 500 tons |
| Number of Ram cylinder | 2 pcs (1 left + 1 right) |
| Maximum piston stroke | 900 mm |
| Clearance between the top and bottom crossbeam | 1000 mm |
| Rapid approach speed | 10 mm/s |
| Pressing speed | 0~3 mm/s |
| Ram cylinder detection accuracy | 0.01 mm |
| Number of wheelset support trolley | 1 set |
| Maximum load capacity of the trolley | 3000 kg |
| Maximum hydraulic system pressure | ≤ 31.5MPa |
| Main power supply (3-ph AC) | 380V/50Hz or as per required |
| Electrical voltage | DC 24V |
| Total installed power | ≤ 40 kW |
| Pressure sensor accuracy | ≤ 0.5%FS |
| Cycle time for dismounting 2 wheels | Approx.4 min |
| Cycle time for the whole dismounting process | ≤ 6 min |
| Control mode | Siemens PLC + AdvanTech industrial PC |
| Machine weight | Approx.40 tons |
| Displacement sensor accuracy | 0.01 mm |
| Wheelset information: | |
| Wheel diameter | Φ760 ~ Φ915 mm |
| Axle length | 2062 ~ 2226 mm |
| Axle body diameter | Φ160 ~ Φ184 mm |
| Wheel seat diameter | Φ186 ~ Φ213 mm |
(*Above parameters are indicative, and can be designed as per customer actual requirements.)
4. Performance Features of the Wheelset Disassembly Press:
1) Automatically dismount the 2 wheels and brake discs on the same axle simultanously without turning the axle and in a sequence first the wheel at one side of the axle then the wheel at the other side.
2) Overall gantry frame structure, with high strength, good rigidity and less deformation.
3) With double ram cylinders for pressing.
4) Special patented centering mechanisms for center hole positioning.
5) Movable baffle devices for dismounting the wheels and brake discs
6) Siemens PLC and AdvanTech Industrial PC to control the automatic dismounting operation.
7) The wheelset press can track and control the whole process, detect the pressing condition of the wheelset, and analyze and process it through industrial computer.
